Brand Name : SUPMETER
Model Number : BST106-N59[B]
Certification : CE
Place of Origin : China
MOQ : 1 set
Price : negotiate
Payment Terms : T/T
Supply Ability : 2000sets/ months
Delivery Time : 8-15 working days
Packaging Details : carton box
Power Supply : DC24V
Application : Wheel Loader/Shovel Loader
Oil Pressure Sensor : 0~40Mpa
Single package size : 50X35X25 cm
Single gross weight : 8.000 kg
Package Type : carton box
Wheel Loader Weigher is a dynamic weighing and auto-totalizing equipment installed on wheel loader without changing the original structure of wheel loader.
When the lift-arm of wheel loader lifted to a certain height, the position sensor will trigger the weighing process, and the weighing indicator will collect the oil pressure signal from lower and upper oil chambers of arm-lifting oil cylinder. After signal processing and compensating, Single-bucket-loading-weight will be got and totalized to Totalized Loading Weight automatically, and the Deviation Value between Totalized Loading Weight and Setpoint, alarm messages will be displayed. The operator can judge if the present Single-bucket-loading-weight is valid according to the alarm messages, and confirm the loading weight of last bucket according to Negative Deviation Value for avoiding overloading. After Totalized Loading Weight reached setpoint, the operator should stop loading process, save and print Loading Records.
Details:
• HALL Type Proximity Switches
Operating Voltage: DC5~24V.
Detecting Distance: 1~8mm.
Response Frequency: 5KHz.
Quiescent Current:Max. 2mA.
Thread Size: M8×1mm.
Service Temperature: -25℃~+70℃.
Protection Level: IP67.
• Standard Detecting Target
Permanent magnet.
Outline Size: 30×10×5mm [L×W×T].
Operating Voltage: DC5V.
Capacity: 0~25MPa.
Accuracy: ±0.1%FS.
Output Sensitivity: 2mV/V.
Zero Drift: ±0.015%FS/℃.
Safe Overload: 120%FS.
Thread Size: M10×1mm.
Service Temperature: -40℃~+125℃.
Protection Level: IP67.

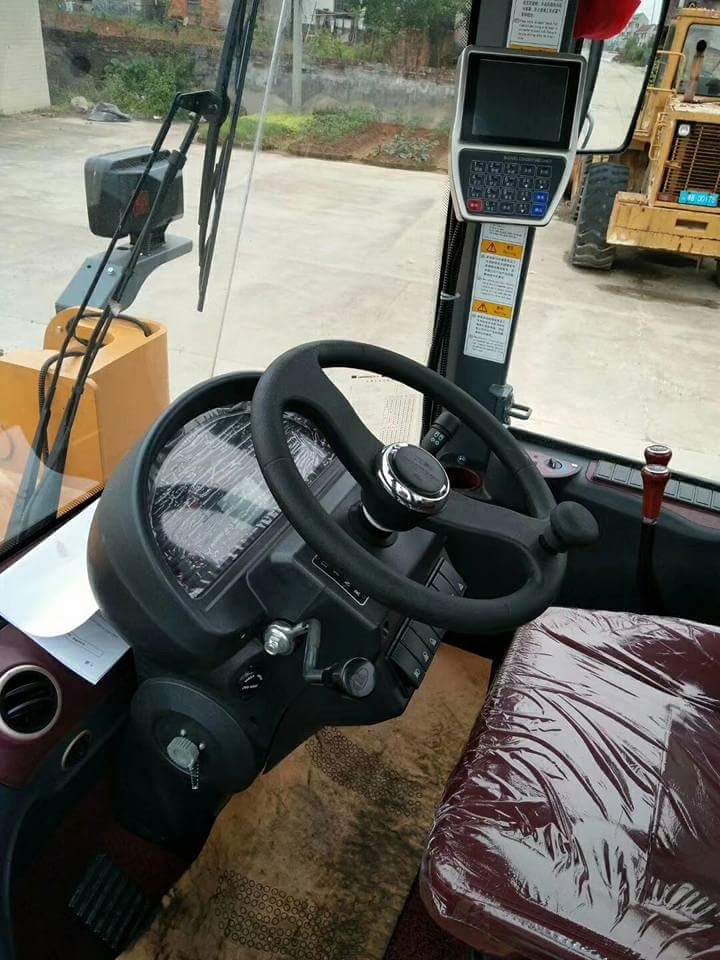

Weld the mounting bracket of the weighing indicator firmly on the metal frame of the wheel loader driving cab. The installation position should be convenient for operation.
Suggestion: Install the weighing indicator in the driving cab of wheel loader and on the side the door which will not be opened frequently.
The upper oil connecting port and lower oil connecting port of arm-lifting oil cylinder are the installation positions of oil pressure sensors.
Suggestion: Install the oil pressure sensors on the arm-lifting oil cylinder which is at the same side that the weighing indicator installed on.

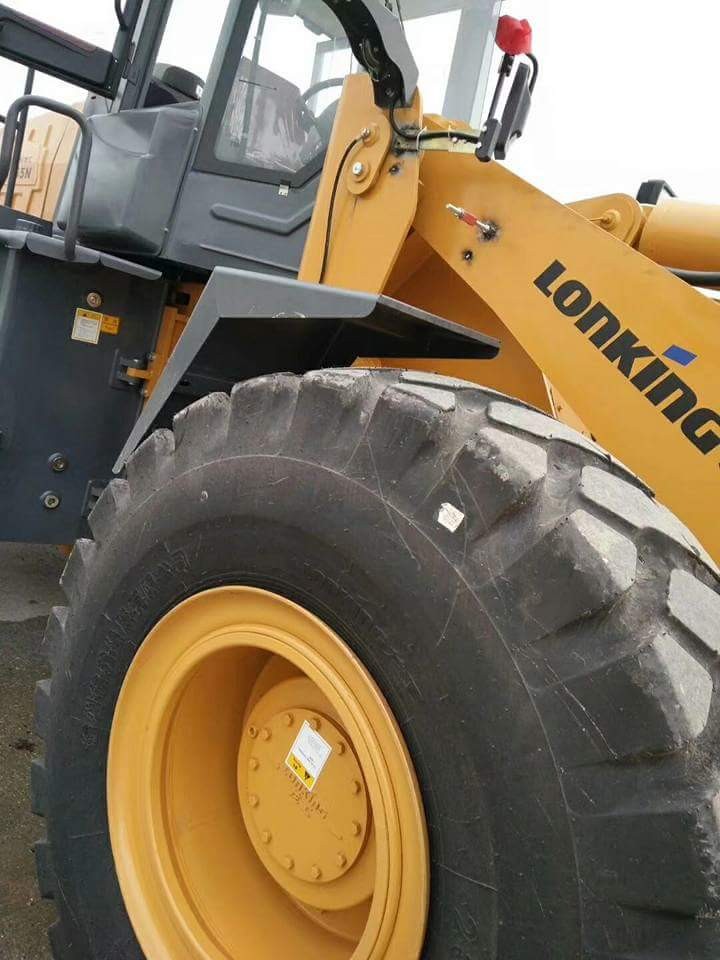

Install the position sensor on the lift-arm seat and lift-arm which are at the same side that the weighing indicator installed on
There is a thermal printer buillt-in indicator.
If you don't want it, you can connect a printer externally. Please inform us when making order.
Warranty:
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
|
